Tisch-Schnell-Extraktor

MINIATURE-SCALE R&D TECHNOLOGY

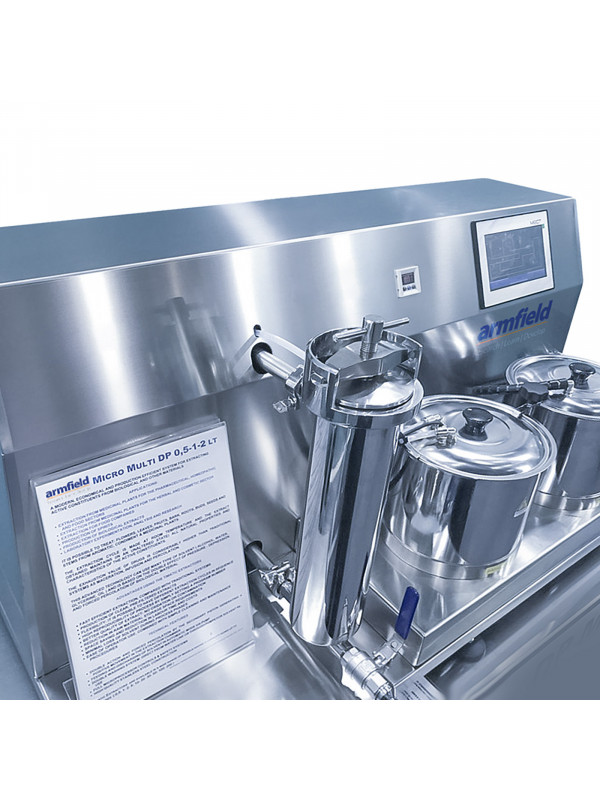

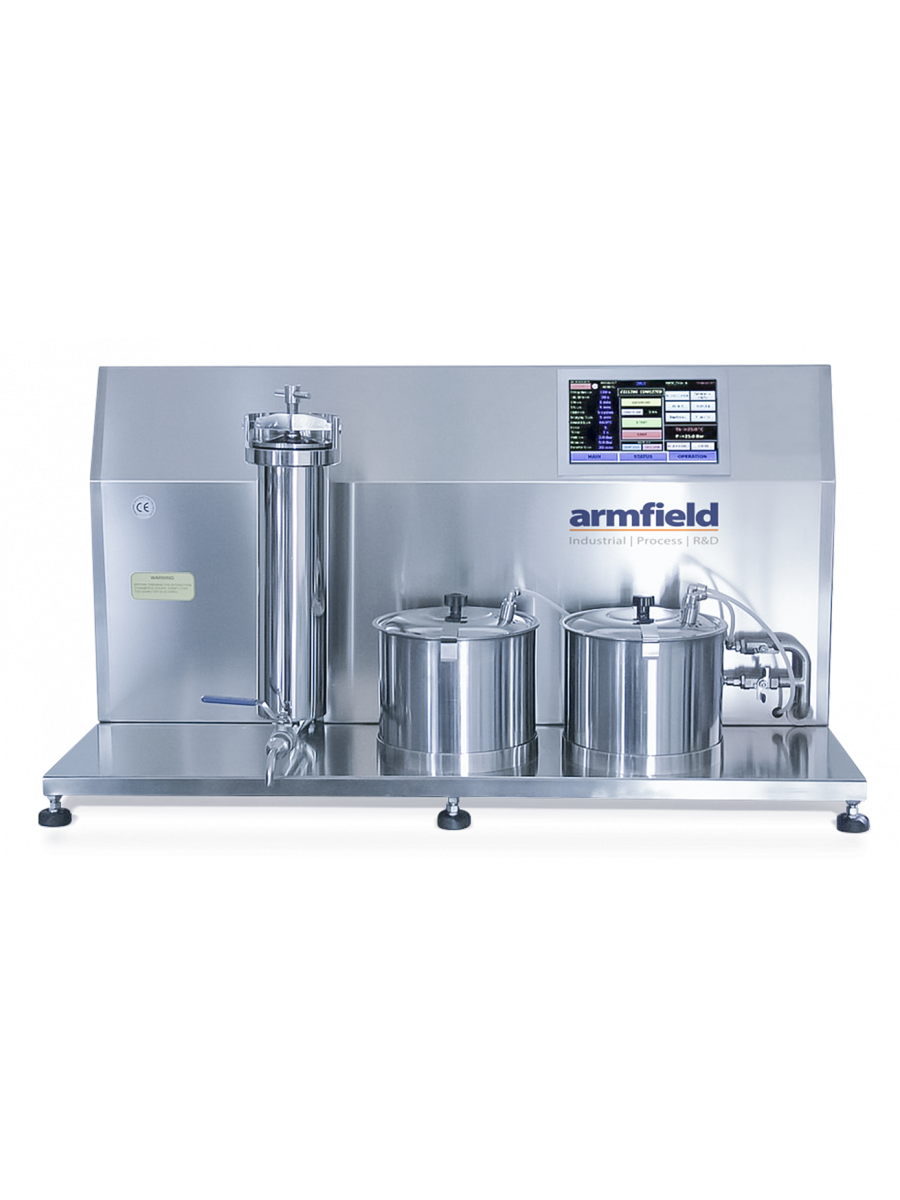

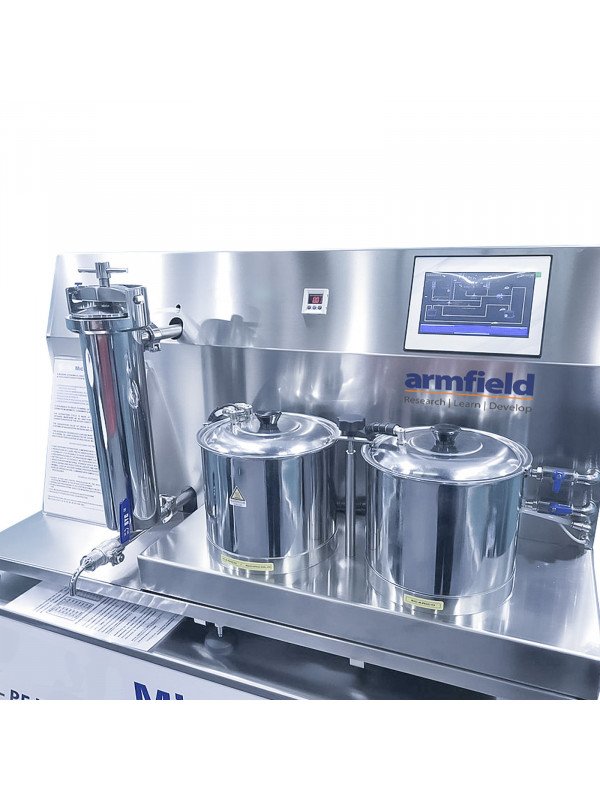

FT110 Tisch-Schnell-Extraktor

Der Armfield FT110 Tisch-Schnell-Extraktor wird verwendet, um die aktiven Bestandteile von kleinen (1 Liter) Materialproben zu extrahieren.

Features

• Fast, efficient solid-liquid extraction of active constituents from plants, herbs, fruits and other similar materials
• High pressure, room temperature extraction, excellent for sensitive materials
• Unaltered natural properties and characteristics of the active constituents, no discolouration or oxidisation
• Easy to use: microprocessor control and real time display of sequencing and process parameters
• Automatic pressure control
• Automatic alarm indication of process anomalies
• Highly flexible extraction parameters

Benefits

> Fast response. Results in hours rather than days
> Small-scale, only one litre of material is required
> Simple cleaning and maintenance procedures
> Uses ethanol, glycerol, water or similar safe solvents
> Reproducible results
> Scale up

Description

The Armfield FT110 uses high pressure and a combination of both static and dynamic extraction phases to achieve a rapid extraction of the active materials with minimum degradation to the product. In the dynamic phases, the solvent is passed through the material providing a forced percolation and agitation.

The process pressure, number of cycles and length of each phase are programmable by the user. In this way the effect of the extraction parameters on the end product can be explored and an optimum set of parameters determined for each product.

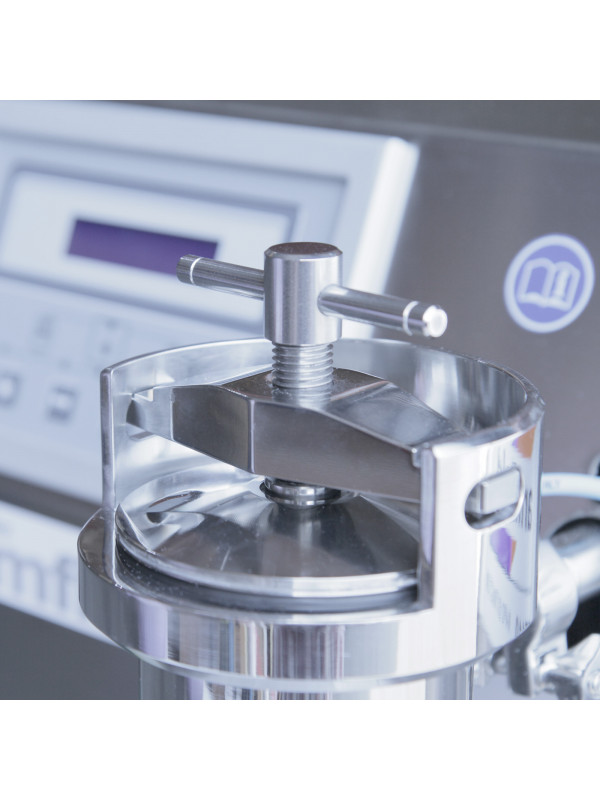

The FT110 vessel is loaded with solvent and primed manually. A single pneumatic piston is used to generatethe pressure in the vessel and to provide the solvent percolation using a novel system of valves.

Applications

> Fruit flavours
> Herbs and plant extracts
> Spirit liquors
> Tinctures and infusions
> Herbal extracts and homeopathy
> Cosmetics
> Pharmaceutical

Technical Specifications

FeatureValue
Vessel volume1 l
Total solvent capacity:1.2 l
Maximum pressure8 Bar
Single piston

Requirements

Electricity: Single phase, 500W
FT110-A 220-240V, 50Hz
FT110-B 115V, 60Hz

Gases:
Compressed Air (or N2) 8bar

Shipping Specification

Volume: 0.3m3
Gross Weight: 40kg

Overall Dimensions

Height: 0.55m
Width: 0.55m
Depth: 0.35m
